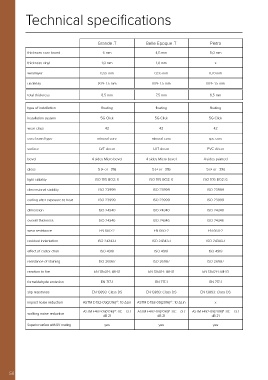

Technical specifications Technical specifications

Grande .T Belle Epoque .T Pietra Avantgarde .T Vintage .T Essential .T

thickness core board 6 mm 4,5 mm 5,0 mm thickness core board 4,0 mm 4,0 mm 4,0 mm

thickness vinyl 1,0 mm 1,0 mm x thickness vinyl x x x

wearlayer 0,55 mm 0,55 mm 0,70 mm wearlayer 0,55 mm 0,55 mm 0,30 mm
underlay IXPE 1.5 mm IXPE 1.5 mm IXPE 1.5 mm underlay IXPE 1.5 mm IXPE 1.5 mm EVA 1.0mm

total thickness 8,5 mm 7,5 mm 6,5 mm total thickness 6,0 mm 6,5 mm 5,0 mm

type of installation floating floating floating type of installation floating floating floating

installation system 5G Click 5G Click 5G Click installation system 5G Click UNI ZIP 2G

wear class 42 42 42 wear class 42 42 31

core board type mineral core mineral core spc core core board type spc core spc core spc core
surface LVT decor LVT decor PVC décor surface PVC décor PVC décor PVC décor

bevel 4 sides Micro bevel 4 sides Micro bevel 4 sides painted bevel 4 sides Micro bevel 4 sides Micro bevel 4 sides Micro bevel

gloss 5 (+ or - 3%) 5 (+ or - 3%) 5 (+ or - 3%) gloss 5 (+ or - 3%) 5 (+ or - 3%) 5 (+ or - 3%)

light stability ISO 105-BO2: 6 ISO 105-BO2: 6 ISO 105-BO2: 6 light stability ISO 105-BO2: 6 ISO 105-BO2: 6 ISO 105-BO2: 6

dimensional stability ISO 23999 ISO 23999 ISO 23999 dimensional stability ISO 23999 ISO 23999 ISO 23999

curling after exposure to heat ISO 23999 ISO 23999 ISO 23999 curling after exposure to heat ISO 23999 ISO 23999 ISO 23999

dimension ISO 24340 ISO 24340 ISO 24340 dimension ISO 24340 ISO 24340 ISO 24340
overall thickness ISO 24346 ISO 24346 ISO 24346 overall thickness ISO 24346 ISO 24346 ISO 24346

wear resistance EN 660-2 EN 660-2 EN 660-2 wear resistance EN 660-2 EN 660-2 EN 660-2

residual indentation ISO 24343-1 ISO 24343-1 ISO 24343-1 residual indentation ISO 24343-1 ISO 24343-1 ISO 24343-1

effect of castor chair ISO 4918 ISO 4918 ISO 4918 effect of castor chair ISO 4918 ISO 4918 ISO 4918

resistance of staining ISO 26987 ISO 26987 ISO 26987 resistance of staining ISO 26987 ISO 26987 ISO 26987
reaction to fire EN 13501-1: Bfl-S1 EN 13501-1: Bfl-S1 EN 13501-1: Bfl-S1 reaction to fire EN 13501-1: Bfl-S1 EN 13501-1: Bfl-S1 EN 13501-1: Bfl-S1

formaldehyde emission EN 717-1 EN 717-1 EN 717-1 formaldehyde emission EN 717-1 EN 717-1 EN 717-1

slip resistance EN 13893: Class DS EN 13893: Class DS EN 13893: Class DS slip resistance EN 13893: Class DS EN 13893: Class DS EN 13893: Class DS

impact noise reduction ASTM E492-09(2016) : 10 ΔLin ASTM E492-09(2016) : 10 ΔLin x impact noise reduction x x x
ε1
ε1
ASTM E492-09(2016) : IIC = 73 / ASTM E492-09(2016) : IIC = 73 / ASTM E492-09(2016) : IIC = 73 / ASTM E492-09(2016) : IIC = 73 / ASTM E492-09(2016) : IIC = 73 / ASTM E492-09(2016) : IIC = 73 /
ε1
ε1
ε1
ε1
ε1
ε1
walking noise reduction walking noise reduction
dB 21 dB 21 dB 21 dB 21 dB 18 dB 21
Superior surface with UV coating yes yes yes Superior surface with UV coating yes yes yes
